5,000 Gallon Stainless Steel Jacketed Mixing Tank with Agitator
5,000 Gallon Stainless Steel Jacketed Mixing Tank with Agitator
Location:Illinois
Description

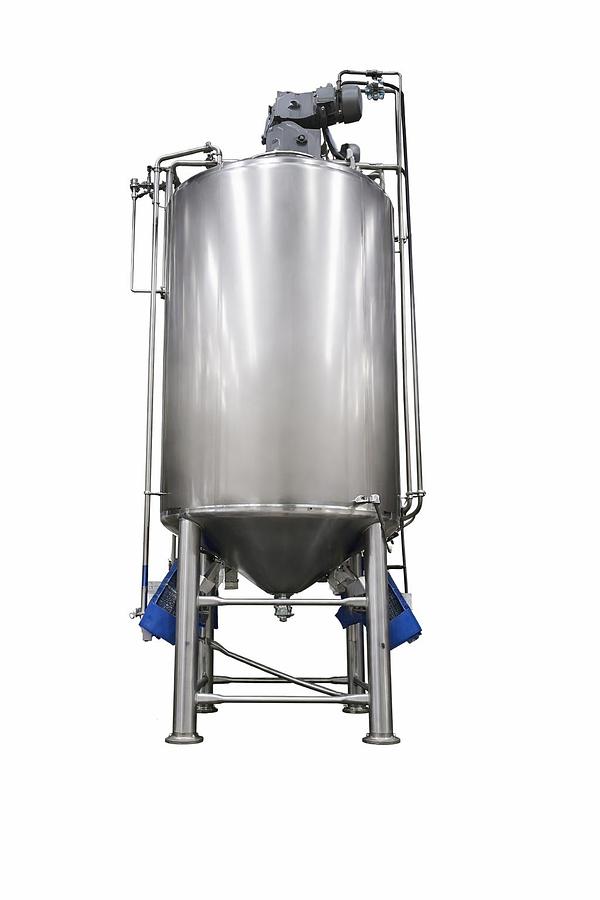

5,000 Gallon Jacketed Stainless Steel Scraper Mixing Tank – 316 Stainless | EIC Tanks
The 5,000 gallon jacketed stainless steel mixing tank manufactured by EIC Tanks is designed for high-performance industrial mixing, heating, and batch processing applications. This 5,000 gallon jacketed mixing tank provides efficient agitation, precise temperature control, and durable construction for demanding production environments.
Built with 316 stainless steel product contact surfaces, this industrial jacketed mixing vessel offers excellent corrosion resistance, sanitary performance, and long-term durability for food, cosmetic, pharmaceutical, and chemical manufacturing operations.
The jacketed tank design allows heating or cooling through steam, hot water, or glycol systems, while the integrated agitation system ensures consistent product movement and uniform mixing performance.
Manufactured in the USA by EIC Tanks, this 5,000 gallon stainless steel mixing tank is fully customizable to match your facility layout, process requirements, and production goals.
Learn more about selecting the right vessel in our guide:
➡ How to Choose the Right Stainless Steel Mixing Tank
https://www.eictanks.com/blog/79172-how-to-choose-the-right-stainless-steel-mixing-tank
Equipment Specifications
Manufacturer: EIC Tanks
Tank Capacity: 5,000 Gallon Jacketed Mixing Tank
Material: 316 Stainless Steel Product Contact
Construction Type: Vertical Jacketed Mixing Vessel
Heating Type: Steam Jacket / Hot Water / Glycol
Agitation System: Top Entry Mixer (Custom Options Available)
Bottom Design: Dish Bottom – Cone Bottom Available
Top Design: Closed Top – Hinged Lid / Open Top Options
Finish Options: Mill Finish / Polished Finish / Sanitary Finish
Condition: New – Built to Order
Manufactured In: USA
Lead Time: 14–16 Weeks
Product Overview
This 5,000 gallon jacketed stainless steel mixing tank is engineered for efficient industrial batch processing where heating, cooling, and mixing are required.
The jacketed vessel design allows uniform heat transfer throughout the tank while the agitation system ensures complete product circulation and consistent mixing performance.
Jacketed mixing tanks are commonly used for:
• Heating and blending viscous products
• Maintaining precise batch temperatures
• Emulsification and dispersion
• Controlled processing of temperature-sensitive materials
Fabricated from high-quality stainless steel, this 5,000 gallon mixing tank provides superior resistance to corrosion, aggressive cleaning chemicals, and high-temperature production environments.
EIC Tanks manufactures jacketed mixing vessels ranging from 50 gallons to 5,000+ gallons, allowing manufacturers to scale production with reliable equipment.
➡ View larger capacity units:
1000 Gallon Jacketed Mixing Tanks
Construction Options
EIC stainless steel mixing tanks are available with multiple configurations to match your production process and facility requirements.
Top Design Options
Closed / Sealed Top – Ideal for sanitary processing environments
Open Top – Easy access for batching and manual loading
Hinged Lid – Convenient access for cleaning and inspection
Removable Lid – Full access to the vessel interior
Dome Top – Improved structural strength and runoff
Bottom Design Options
Flat Bottom – Stable stationary installation
Dish Bottom – Improved drainage
Cone Bottom – Ideal for viscous products and full discharge
Sloped Bottom – Enhanced product flow
Heating & Jacket Options
Jacketed mixing tanks can be designed for various heating and cooling systems.
Available heating systems include:
• Steam jacket heating
• Hot water heating
• Glycol cooling systems
• Electric heating elements
• Insulated exterior cladding
Learn more about steam jacketed kettles used for cooking and heating processes:
➡ Steam Jacketed Mixing Kettles
https://www.eictanks.com/jacketed-kettles

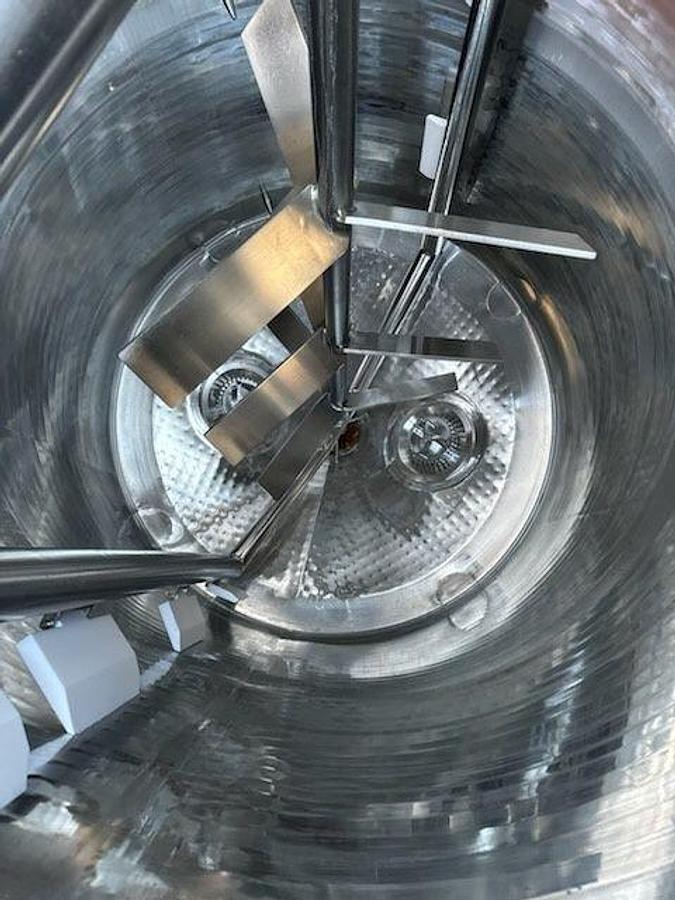

Mixing & Agitation Options
EIC Tanks offers multiple agitation systems depending on product viscosity and processing requirements.
Propeller Mixers
Ideal for low viscosity products and general blending.
Anchor Agitators
Designed for medium to high viscosity products and jacketed vessels requiring improved heat transfer.
High Shear Mixers
Used for emulsification, particle size reduction, and rapid dispersion.
Dual Motion Mixing Systems
Combines sweep agitation with center mixing for improved product circulation.
➡ Explore our Double Motion Mixing Tanks
Sanitary & Process Options
Custom mixing tanks can include a wide range of sanitary and process features.
Available options include:
• CIP spray balls
• Manways
• Sight glasses
• Temperature probes
• Level sensors
• Pressure relief valves
• Custom process fittings
Available Tank Sizes
EIC Tanks manufactures jacketed stainless steel mixing tanks in a wide range of capacities including:
50 gallon mixing tanks
100 gallon mixing tanks
300 gallon mixing tanks
500 gallon mixing tanks
750 gallon mixing tanks
1000 gallon mixing tanks
2000 gallon mixing tanks
➡ Browse our complete stainless steel mixing tank inventory
https://www.eictanks.com/listings
Applications
This 5,000 gallon jacketed mixing tank is commonly used in:
Food processing and ingredient blending
Cosmetic and cream manufacturing
Pharmaceutical processing
Chemical batch processing
Personal care product manufacturing
Adhesive and coating production
Specialty industrial manufacturing
Industries Served
EIC stainless steel mixing tanks are widely used in:
Food manufacturing
Cosmetic production
Pharmaceutical processing
Chemical manufacturing
Personal care manufacturing
Nutraceutical processing
Frequently Asked Questions
What is a jacketed mixing tank used for?
Jacketed mixing tanks are used to heat or cool products while mixing, allowing controlled temperature processing for food, cosmetic, pharmaceutical, and chemical manufacturing.
What products can be processed in a jacketed tank?
Jacketed mixing tanks are used to process sauces, creams, lotions, cosmetics, chemicals, adhesives, pharmaceuticals, and specialty food products.
Related Equipment
Customers interested in this equipment also view:
➡ 100 Gallon Jacketed Mixing Tank
➡ 500 Gallon Steam Jacketed Kettle
➡ 1000 Gallon Stainless Steel Mixing Tank
https://www.eictanks.com/listings/8366094-1000-gallon-eic-stainless-steel-holding-tank
➡ Triple Motion Mixing Kettles
Why Choose EIC Tanks?
✔ Manufactured in the USA
✔ Built with high-quality stainless steel
✔ Custom mixing and agitation systems available
✔ Tank sizes from 50 gallons to 5,000+ gallons
✔ Designed for sanitary, food-grade, pharmaceutical, and chemical applications
✔ Fully customizable to match your process and facility layout
Specifications
| Manufacturer | EIC Tanks |
| Model | EIC-JMT-5000 |
| Year | 2026 |
| Condition | New |
| Stock Number | EIC-5000-JMT |
| Manufacturer | EIC Tanks |
| Construction Type | Vertical Jacketed Mixing Vessel |
| Manufactured In | USA |
| Lead Time | 14–16 Weeks |
