Manufacturer: EIC

Tank Capacity: 1,000 Gallon

Material: 10 GA 316 Stainless Steel

Construction Type: Vertical / Horizontal (customizable)

Top Design: Open Top- Available options / Hinged Lid / Dome Top / Closed Top

Bottom Design: Flat Bottom - Available options / Dish Bottom / Cone Bottom

Overall Dimensions: 65 Dia X 73 x 95 OAH - Tank Dimensions can be customized on new tanks

Finish: Mill Finish / Polished / Sanitary Finish

Condition: New – Built to Order

Manufactured In: USA

Lead time: 14-16 weeks

🔹 Product Overview

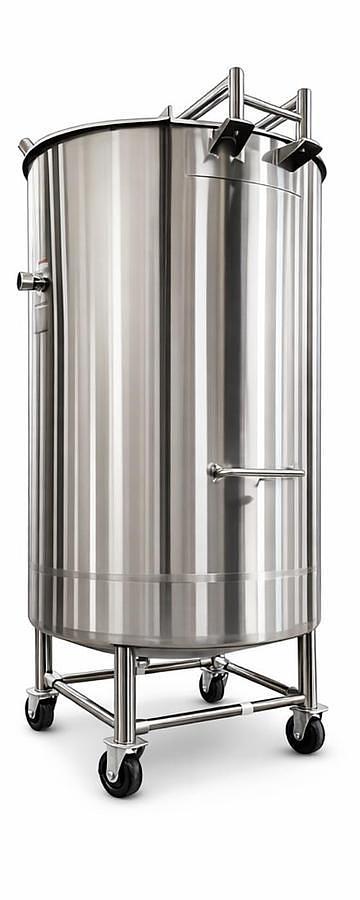

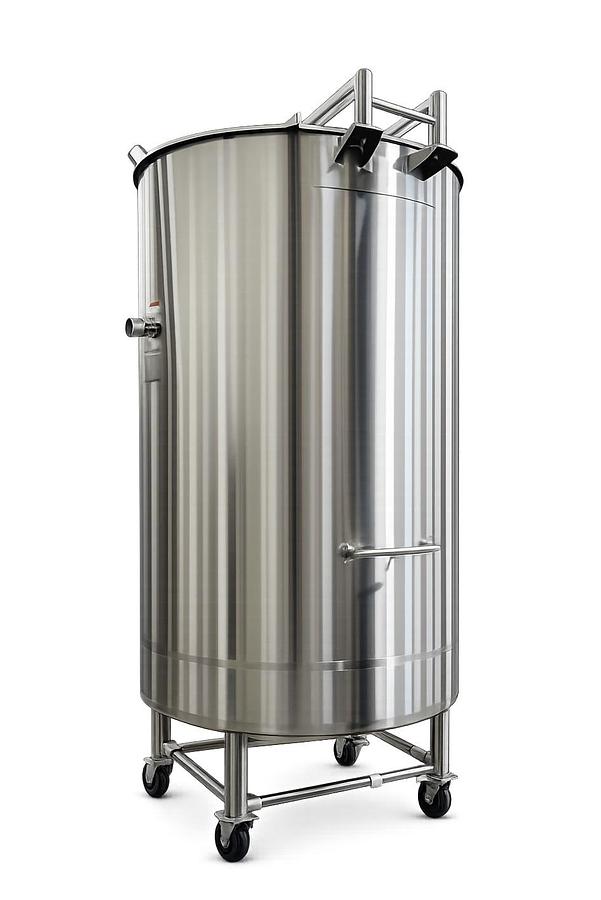

This 1,000 Gallon 316 stainless steel holding tank is engineered for long-term durability, corrosion resistance, and reliable industrial performance. Designed and manufactured in the USA, this tank is built to meet demanding processing, storage, and containment requirements across a wide range of industries.

Fabricated from premium 316 stainless steel, this tank offers superior resistance to corrosion, chlorides, harsh cleaning chemicals, and high-temperature environments. Ideal for food, chemical, pharmaceutical, cosmetic, beverage, dairy, and water treatment industries.

Available in capacities ranging from 50 gallons to 30,000+ gallons, EIC Holding Tanks can be customized to match your exact operational needs.

Construction Options

EIC holding tanks are available with multiple configurations to suit your specific process requirements.

Top Design Options

• Closed / Sealed Top – Ideal for controlled environments and sanitary processes
• Open Top – Easy access for batching, mixing, and manual loading
• Hinged Lid – Secure access with convenient operation
• Removable Lid – Full internal access for cleaning and inspection
• Dome Top – Increased structural strength and improved runoff
• Sloped Top – Designed for drainage and sanitary performance

Bottom Design Options

• Flat Bottom – Stable and cost-effective for stationary use

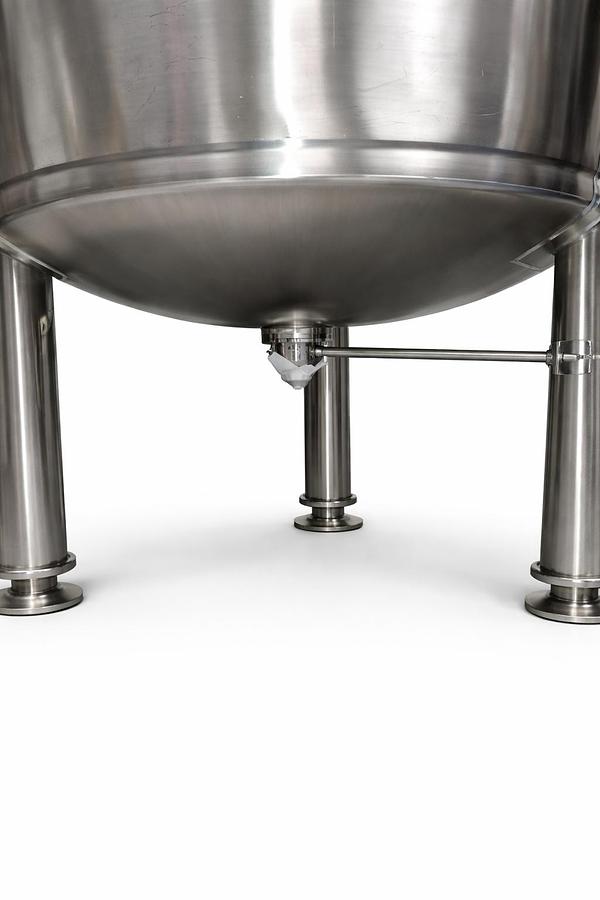

• Dish Bottom – Improved drainage and structural support
• Cone Bottom – Complete discharge capability for viscous or solid materials
• Sloped Bottom – Enhanced product flow

Additional Features & Custom Upgrades

EIC tanks can be equipped with a wide range of optional enhancements:

Mobility & Structural

• Heavy-duty casters or stainless steel wheels
• Forklift channels
• Structural support stands
• Adjustable leveling feet
• Skid-mounted configurations

Monitoring & Instrumentation

• Integrated load cells
• Temperature probes (RTD or thermocouple)
• Level sensors
• Sight gauges
• Digital monitoring displays
• Fully integrated control panels

Heating & Insulation

• Jacketed tank design (single or dual wall)
• Steam jacketed systems
• Electric heating elements
• Insulated exterior cladding
• Glycol or hot water heating systems

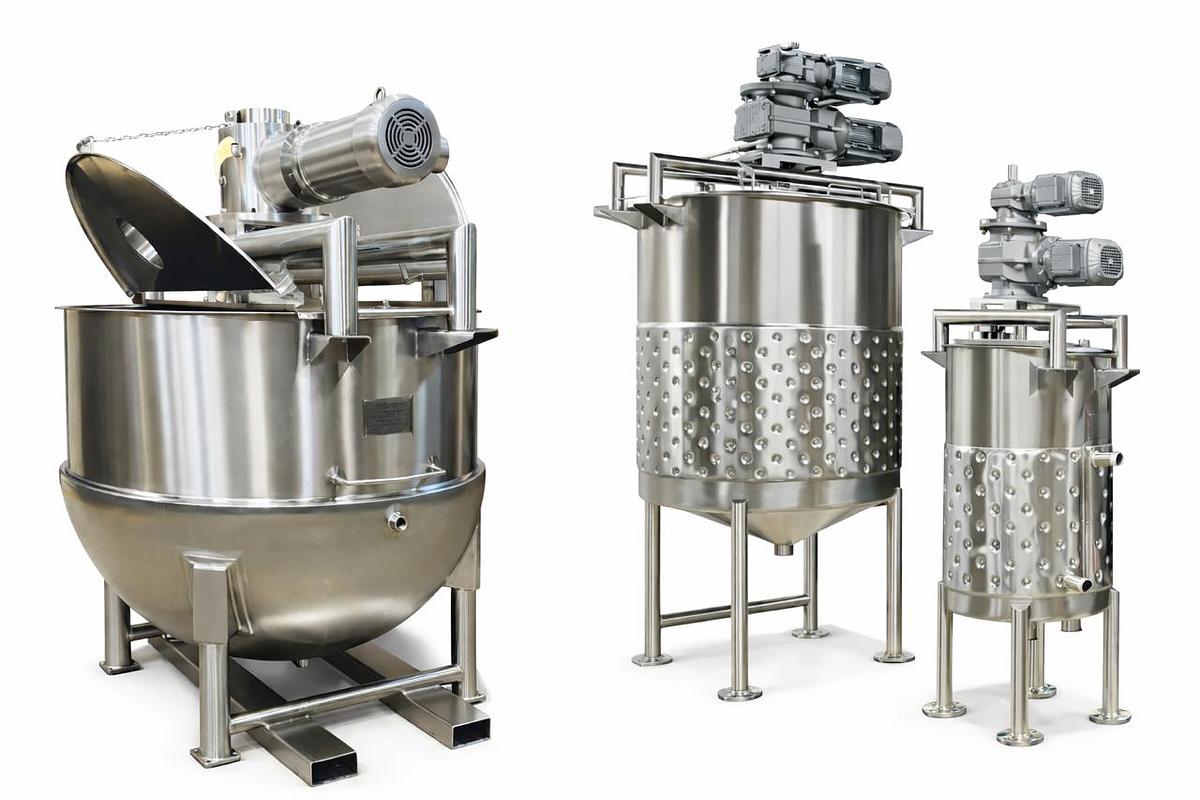

Mixing & Agitation

Anchor Agitators

Ideal for medium to high viscosity products. Anchor agitators provide full-sweep mixing and can be equipped with wall scrapers to improve heat transfer in jacketed vessels.

Sweep Agitation Systems

Designed to move product efficiently across the entire vessel surface, reducing dead zones and improving uniformity.

High-Shear Rotor/Stator Mixers

Engineered for emulsification, particle size reduction, and rapid dispersion. These systems are ideal for cosmetic, pharmaceutical, and specialty chemical applications.

Dual-Motion & Triple-Motion Systems

Combines sweep agitation with high-shear mixing for applications requiring both bulk movement and controlled shear.

Top-Entry & Bottom-Entry Agitators

Selected based on tank configuration, cleaning requirements, and structural design.

Each system is integrated directly into the vessel during the engineering phase to ensure structural stability and proper load distribution.

Sanitary & Process Options

• CIP spray balls
• Manways
• Sight glasses
• Pressure relief valves
• Custom process fittings

Applications

This 316 stainless steel holding tank is suitable for:

• Water storage and treatment systems
• Chemical storage and blending
• Food and beverage production
• Pharmaceutical processing
• Cosmetic manufacturing
• Agricultural applications
• Wastewater and industrial containment

Why Choose EIC Holding Tanks?

• Manufactured in the USA
• Built from 316 stainless steel
• Custom sizes from 50 to 30,000+ gallons
• Engineered for long service life
• Designed for industrial, sanitary, and chemical environments
• Fully customizable to your specifications
